Description

The Accu-Check Active Meter is a reliable and convenient blood glucose monitoring system designed to make regular blood sugar testing simple and manageable. Its compact design, straightforward operation, and useful built-in features make it suitable for people who regularly monitor their blood glucose levels at home or while travelling.

Key Specifications

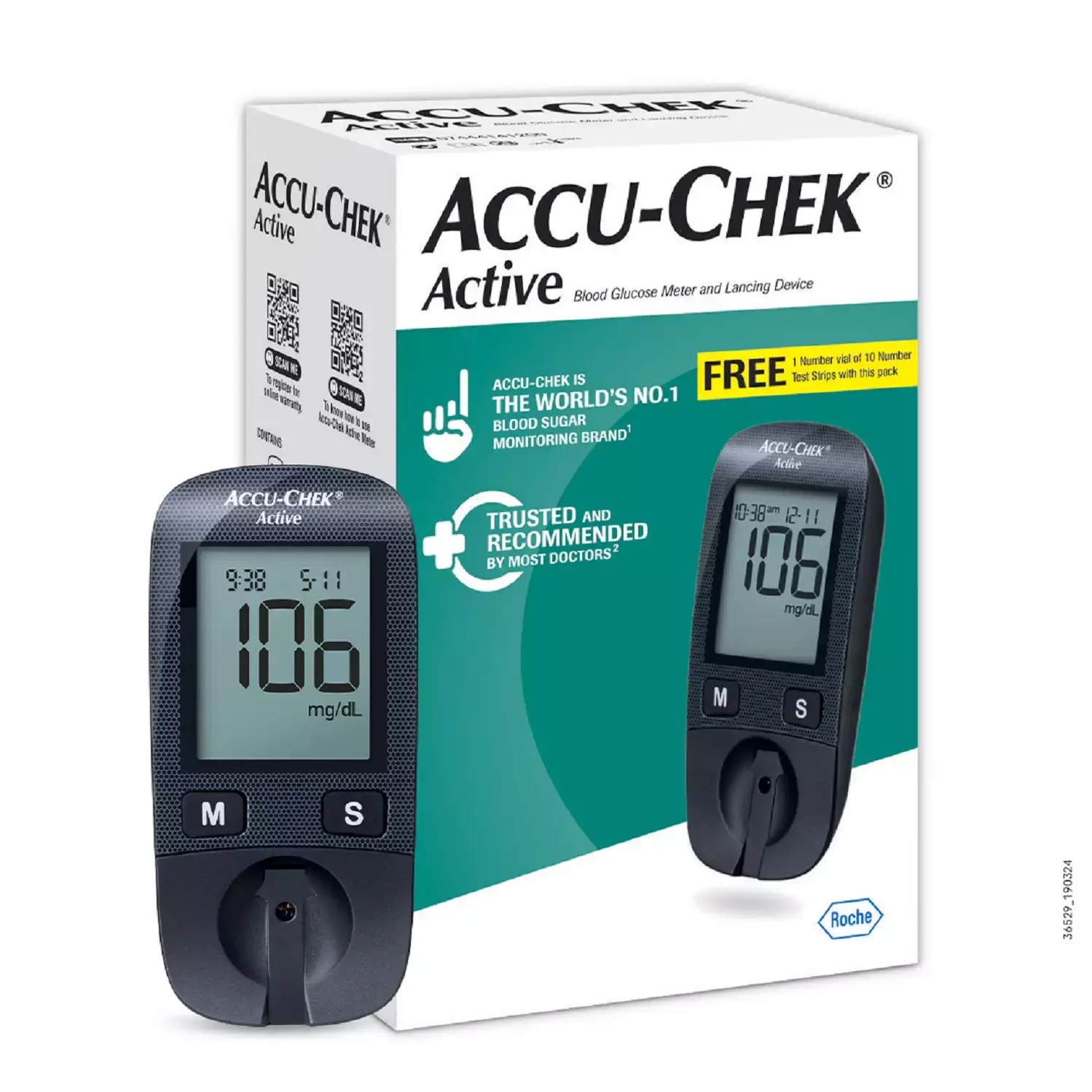

• Product: Accu-Check Active Blood Glucose Meter
• Measurement principle: Reflectance photometry using fresh capillary blood
• Measuring range: 10–600 mg/dL
• Blood sample volume: 1–2 µL
• Test time: Approximately 5 seconds when the test strip is inserted into the meter
• Memory: Up to 500 blood glucose results with date and time
• Averages: 7, 14, 30, and 90-day averages
• Display: 96-segment LCD
• Coding: No coding required
• Battery: 1 × CR2032 lithium battery
• Battery life: Approximately 1,000 tests or around 1 year
• Automatic power-off: Approximately 30 or 90 seconds depending on operating status
• Dimensions: 97.8 × 46.8 × 19.1 mm
• Weight: Approximately 50 g with battery
• Interface: Micro-USB for data transfer
• Operating temperature: +8°C to +42°C
• Operating humidity: Up to 85% relative humidity
• Altitude: Sea level to 4,000 m

Key Benefits

Fast Results: Blood glucose results are available in approximately 5 seconds, helping make routine testing quicker and more convenient.

Small Blood Sample: The meter requires only a 1–2 µL blood sample, helping simplify regular finger-stick testing.

No Coding: No manual coding is required, reducing the number of steps involved in preparing the meter for testing.

Easy-to-Read Display: The large LCD display makes blood glucose readings easy to view.

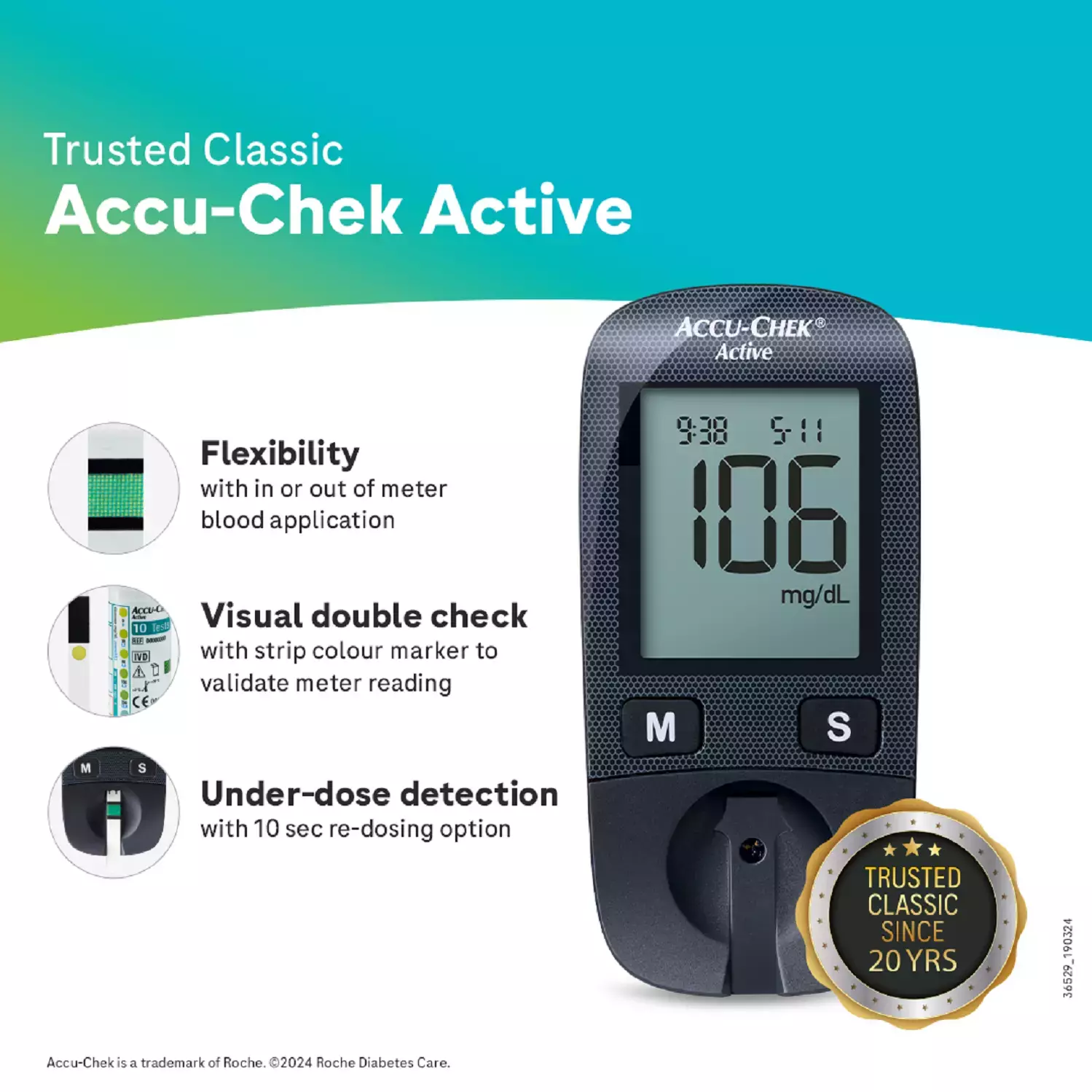

Underdose Detection: The system can alert the user when an insufficient blood sample has been applied, with the option to add more blood within 10 seconds on supported strips.

Result Memory: Stores up to 500 test results with date and time, allowing users to review previous readings and monitor trends.

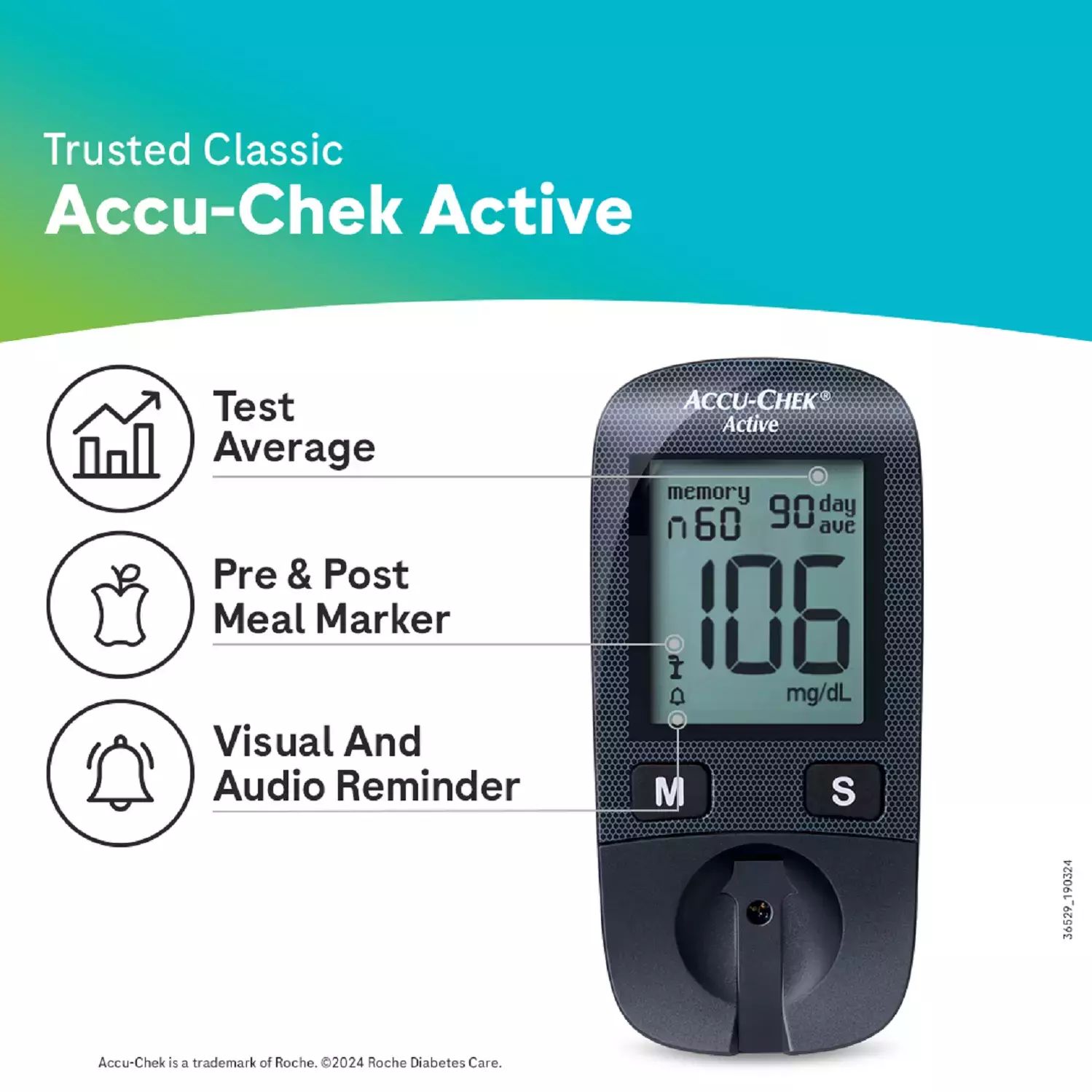

Test Averages: 7-, 14-, 30-, and 90-day averages help users review their blood glucose patterns over time.

Meal Markers and Reminders: Pre-meal and post-meal markers help organize test results, while the post-meal reminder can help remind users to test after eating.

Compact & Portable: Measuring approximately 97.8 × 46.8 × 19.1 mm and weighing about 50 g with the battery, the meter is convenient for everyday carrying.

Data Transfer: The Micro-USB interface supports transferring stored information to a computer using compatible Accu-Check software.
